// Mission Resources
- Primary Intel Hackaday Project →
- Schematics Wiring Diagram →
- Support Data HowChoo Tutorial →
// System Config
Execute the following command via SSH to activate the gamecon driver after RetroPie installation.
sudo sh -c 'echo "gamecon_gpio_rpi" >> /etc/modules && echo "options gamecon_gpio_rpi map=0,0,0,0,0,1" > /etc/modprobe.d/gamecon.conf && reboot'
// Components
Core Hardware
- Controller SNS-005 Model
- Brain Pi Zero v1.3
- Power PowerBoost 1000C
- Energy LiPo 3.7v 500mAh
Interfaces
- I/O SPDT Slide Switch
- Video Mini HDMI Adapter
- Data Micro USB Male
- Charging Micro USB Female

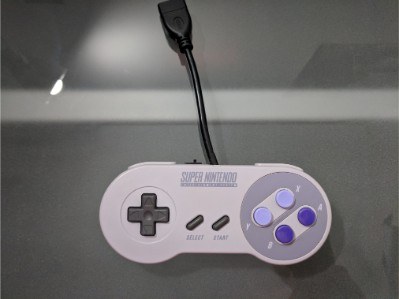

// Visual Log
